Stainless steel hydraulic control valve

Stainless steel hydraulic control valve is a type of valve that uses fluid pressure inside pipelines to achieve automatic control, and is widely used in water supply systems, fire engineering, and industrial fields. The following is its key information:
Product type and function

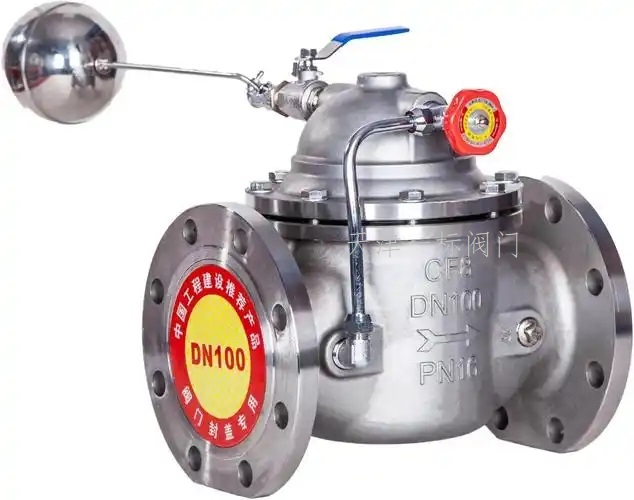

Remote control float ball valve (such as 100X series): Control the liquid level through the float ball, suitable for automatic replenishment of water tanks.
Pressure holding/relief valve (such as 500X series): maintains or releases system pressure, commonly found in fire protection pipelines.
Water pump control valve (such as 700X series): designed with a waterproof hammer to protect the water pump system.
Hydraulic electric control valve (such as 600X series): remotely opened and closed through electromagnetic pilot valve, suitable for high-rise building water supply.
Technical Specifications
Material: Mainly made of 304/316 stainless steel, with strong corrosion resistance.
Pressure range: 1.0-2.5MPa, some models can reach up to 6.0MPa.
Caliber: DN15-DN600, meeting different pipeline requirements.
Sealing: Metal hard seal+soft seal composite design, leakage rate ≤ 0.1cm3/min.
