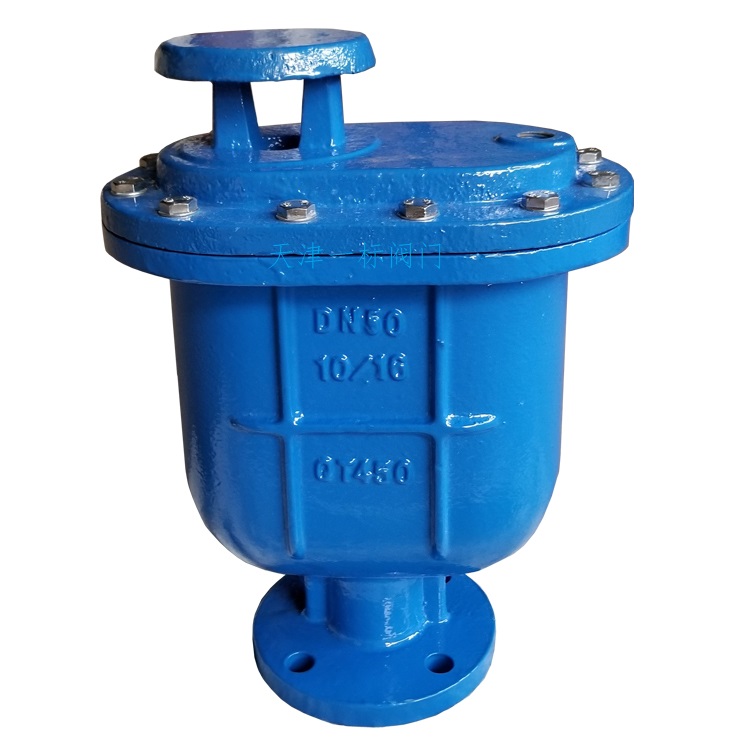

Composite exhaust valve

Composite exhaust valve is a key equipment used for exhaust and air supply in pipeline systems. It is mainly used to remove accumulated air in pipelines or suck in air to prevent negative pressure damage. It is widely used in water supply, heating, fire protection, and industrial pipeline systems. The following is its core information:
Basic functions and working principles
Exhaust function: When the pipeline is filled with water, the floating ball opens the main exhaust port to discharge a large amount of air as the water level drops; After filling, the float rises and closes the exhaust port, and trace gases are continuously discharged through the small hole.
Air supply function: When the pump is stopped or under negative pressure, the floating ball falls and sucks in air to prevent the pipeline from rupturing due to negative pressure.
Applicable media: clean water, sewage (special models required), and corrosive media (316L stainless steel material required).
Technical Specifications
Working pressure: 0.02~1.6MPa (less than 0.02MPa is prone to water leakage).
Temperature range: -20 ℃~80 ℃ (electric heat tracing is required in cold regions).
Material: The valve body is commonly made of cast iron (HT200), ductile iron or stainless steel (304/316L), and the floating ball and seal are made of stainless steel+nitrile rubber.
Key points for installation and selection
Installation position: The highest point or closed position of the pipeline. When installing vertically, it is necessary to ensure that the gas-liquid separation zone is located at the top.
Selection suggestion:
Clear water system: cast iron or ductile iron (such as CARX-16Q).
Corrosive medium: 316L stainless steel (such as CARX-16P).
Sewage system: special models that require buffer plug valves.
Maintenance cycle: 8000 hours to test the freedom of the floating ball, wear of the sealing ring, and sensitivity of the lever.
