Full bore flange filter

Full bore flange filter is a widely used filtering equipment in industrial pipeline systems. Its core feature is that the flow channel is consistent with the inner diameter of the pipeline, which can reduce pressure loss and improve flow efficiency. The following is the key information of the comprehensive search results:
Product type and price
Stainless steel material
GL41W-16P type: 304/316L stainless steel Y-shaped filter, suitable for high-temperature steam pipelines, with a price range of ¥ 185.25~¥ 1780.0, supporting flange connections.
GL41H-16Q type: Full bore design, cast steel or stainless steel filter screen, suitable for fire and sewage pipelines, with a minimum price of ¥ 81.70 (ductile iron material).
Ductile iron material
GL41H-16Q type: Full bore ductile iron filter, resistant to high pressure, with complete specifications of DN50~DN150, wholesale price of ¥ 145.0~¥ 5970.0.

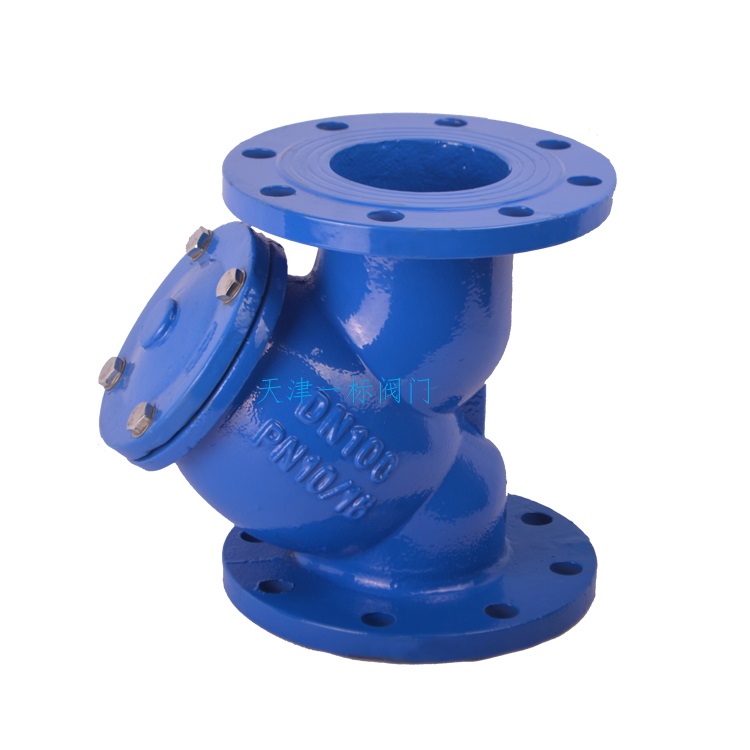

German standard Y-shaped filter: full bore dirt remover, cast iron flange connection, supports customized non-standard sizes.
Function and Performance
Filtering accuracy: Equipped with a standard 304 stainless steel filter screen, it can intercept sediment and impurities, and some models support self-cleaning function.
Applicable media: water, steam, oil and industrial wastewater, working pressure ≤ 1.6MPa.

选型建议
