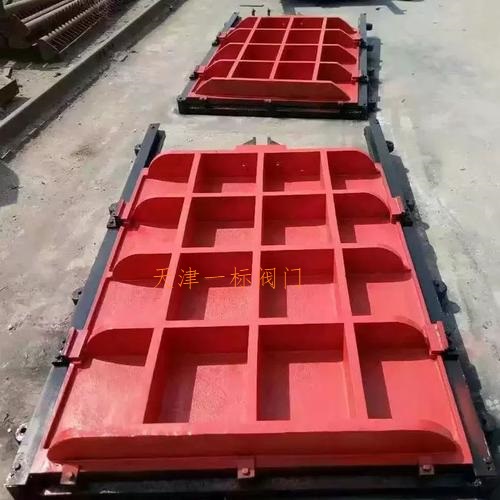

Cast iron copper inlaid square gate

1、 Product Overview
Cast iron copper inlaid square gate is a specialized equipment for water conservancy engineering, made of gray cast iron or ductile iron casting, with copper strips or rubber embedded in the sealing surface, in compliance with CJ/T300-1992 of the Ministry of Construction and AWWA standards in the United States. Its core function is interception and water level regulation, suitable for water supply and drainage, flood prevention, irrigation, and water conservancy and hydropower projects. It achieves bidirectional water stop through wedge devices, with a sealing gap of ≤ 0.1mm.
2、 Technical parameters
Specification and Model
Nominal diameter: DN200~DN2500mm (ZMF series with exposed pole)
Pressure bearing capacity: forward/reverse 10 meter head, nominal pressure ≤ 0.1MPa
Applicable temperature: -20 ℃~120 ℃
Sealing performance
Infiltration rate: forward ≤ 0.7L/min · m, reverse ≤ 1.25L/min · m
Sealing material: Copper alloy or rubber, precision processed and researched
Structural Design
The outer curved door frame and gate plate are evenly stressed, and the length of the guide rail is 1/2~1/3 of the opening height
Adjustable wedge device, supporting maintenance of sealing performance in the later stage
3、 Application scenarios
Water conservancy engineering
Reservoir and river water level control (such as flood prevention and interception)
Irrigation channel flow regulation
Municipal Environmental Protection
Sewage treatment plant interception well
Intersection of urban drainage network
Industrial sector
Control of granular media in the metallurgical and chemical industries
